Quick and easy commissioning - no need for expert knowledge
Recipe selection from operator interface
Internal timer and setpoint programming
Custom alarm messages for easy understanding
Quick Start set-up enabling 'out of the box' operation
Expert configuration via PC wizard with online help
Clear information of process with scrolling, custom messages
Instant indication of heater faults with integral ammeter
Remote setpoint - solution for multi-zone applications

The Eurotherm 3208 emphasis is on simplicity and ease of use.

A simple 'QuickStart' code can be used to configure all the functions essential for controlling your process.  This includes input sensor type, measurement range, control options and alarms - making 'Out of the Box' operation truly achievable.  If you prefer, you can specify what you need at point of order and we will ship the unit preconfigured to your requirements.

Applications:
Plastics - extrusion
Hot runner
Heat treatment
Ovens & chillers
Thermal forming
Stress relieving

Check out these features:
8 Segment programmer
Current monitoring
Heater failure detection
Internal timer
Scrolling text messages
Recipes
Modbus SP retransmission
Modbus comms
Remote setpoint
Analog retransmission
Help text

Don’t delay, order today before they are all gone!.

Predictive Load Management (PLM) is able to eliminate full cycle firing drawbacks.

Two key strategies are included in the PLM function: Load Balancing (or Load Sharing) and Load Shedding. Overall the load balancing strategy is the most important part of PLM to combine multiple SCR’s that are full cycle firing together with a stable overall power demand.

Load balancing is a strategy of equally distributing power of different loads to obtain an overall power consumption as stable and balanced as possible thus eliminating peaks of power. Each heating zone controlled by an SCR controller, is defined by an output power, cycle time and a maximum power (max capacity), which can be pictured as a rectangle. Rather than letting these rectangles pile up randomly, the PLM equipped controller uniformly distributes them thereby ensuring that at any given moment the overall power is as stable and balanced as possible. It is important to understand that the PLM function does not change the output power but rather balances and shifts the power evenly thereby eliminating any disturbance. The result is optimum load management through intelligent load balancing and load sharing, a strategy that will eliminate peaks and flicker and even the out overall power usage.

By using the PLM function, manufacturers are now able to use zero cross firing for their system without any drawbacks. Eliminating Phase Angle firing significantly improves the power factor which in turn results in substantial savings.

Additionally, using energy more efficiently (i.e. substantially decreasing the reactive power (KVAR) results in less power generated by the utility company. In fact, we should consider that consuming reactive power is in the end simply a waste of energy. While a bad power factor forces the utility company to generate this extra reactive power, it will be of absolutely no use to the end user. Besides saving costs, implementing a best practice of efficient energy consumption also results in considerably less CO2 emissions released in the atmosphere.

This is an excerpt from an article by René Meuleman

Eurotherm BV, Genielaan 4, 2404 CH Alphen ad Rijn, Netherlands

1/8 DIN size and horizontal mount with accurate indication of temperature and process measurements. Process interlocks, including over temperature limits, are implemented using relay output channels.

A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process making it easy to use.

This horizontal unit is ideal for control panels in furnaces, ovens and environmental chambers, plus a murid of other applications

Below are the mounting dimensions.

Eurotherm 2208e 1/8 DIN mounted, high stability temperature and process controllers with the following attributes:

•  Self-tuning with overshoot inhibition
•  Heating and cooling outputs
•  Customized operator display
•  The hardware is configurable for heating, cooling or alarms.
•  Digital communications
•  Fully configurable on-site
•  Modular heating and cooling outputs
•  Digital communications with industry standard protocols
•  Easy connection through digital comms
•  Two digital inputs to select auto/manual transfer
•  Modbus and DeviceNetTM communications
•  Advanced load current monitoring

Applications include, but not limited to:

• Food and brewing
• Plastics - Extrusion with optimized fan or water cooling algorithms
• Heat Treatment - Ovens and furnaces
• Cold stores
• Packaging machines

Features:

• Universal input
• Heating and cooling outputs
• Motorized valve output
• Up to three alarm relays
• Setpoint rate limit with timer function
• Heater current display
• Load diagnostics

Click here to build your own 2208e

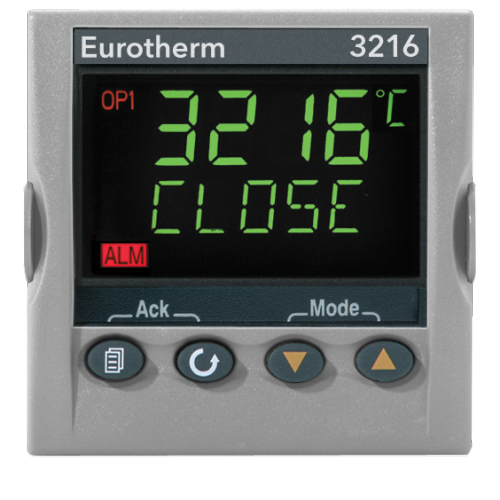

The Eurotherm range of 3216i indicators provides accurate indication of temperature and process measurements. Process features including over temperature furnace limits, are implemented using relay output channels.

Click here to build your own instrument board by board!

A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process.  This feature emphasis the ease of use of the 3216i.

Dimension of the instrument are listed below!

The 3500 is a fully programmable controller suitable for precision control of temperature, dew-point, carbon potential and oxygen in atmosphere heat treatment applications.

It is capable of being used solely to control the carbon potential, oxygen in a furnace or dew-point. Also functioning as an integrated furnace controller where any of these variables are controlled in conjunction with temperature. Additional features provide combined logic and math functions.

At the heart of the controller is a specially designed function block capable of accepting most zirconia probes. Standard features include an automatic probe cleaning routine, a shooting alarm and diagnostics indicating that the probe is about to fail and should be replaced.
For standard solutions controllers can be configured with features and user screens.

User customization can be achieved by reconfiguring the unit either via the front panel or the comprehensive PC based Eurotherm iTools.

A complete data sheet on the dual loop version of the 3500 is available HA029045.

Despite the high profile, one point that often evades the spotlight is the amount of energy actually required to produce the world's electricity supplies. Today's economy, energy efficiency - or, more accurately, the lack of it - is a strongly debated topic that incites passions in companies and consumers alike. Those who generate the power, however, are acutely aware of the requirements. They know that to preserve the quality and to control costs and value of their product, the processes for generating and distributing energy must be as efficient and streamlines as possible.

To improve the profitability of its operation and efficiency, one major European electricity provider deployed a solutions centered on Eurotherm's proven EPower controller technology.

Action Efficiency

The EPower controller was installed on a heat treatment furnace at the client's site. In this application, EPower manages the heating elements and regulates power input across the combustion process, combining improved data accuracy with real-time networking and load analysis and communications.

The EPower controller sends live network data and furnace-load directly to the control room, enabling operators to modify their process strategy immediately in accordance with the incoming data feed. Changes made to the control type, load configuration and firing mode all facilitate improved process efficiency.

Increased Efficiency and Safety with Lower costs

Through sophisticated shedding techniques and sharing, EPower's Predictive Load Management (PLM) capability enabled this provider to reduce facility-wide energy costs by providing more efficient distribution across a variety conditions and loads by preventing overshoot of nominal power. EPower enables them to stay within their contract limits.

The customer is additionally avoiding tariffs that could be assessed if stringent government emissions tolerance requirement are not met consistently. The solutions enables accurate record-keeping that provides proof of the provider's compliance. Without these reports, the operation would be in danger of being shut down.

EPower's ability accurately predict continually and, to monitor and adjust to demand is creating more efficient energy production for the customer. Company executives estimate that the solutions will reduce energy costs by improving overall process efficiency by as much as 10%. Because no electrical parts were ever exposed, the configuration also offered a secondary safety benefit, especially to untrained personnel.

96mm Wide x 96mm High x 150mm Deep
The 2404 is a versatile, high stability temperature or process controller.
Features & Options include:
- Dual Display
- Self-Tuning,
- Universal Inputs,
- Modular design allows for the potential of up to 4 outputs,
- 2 digital communications,
- Program & segment options

Eurotherm products, such as the Series 2000 and 3000 Temperature or Process Controllers, PC3000 family can be directly interfaced into Profibus DP networks. Eurotherm provides at no charge a GSD File Editor for all Eurotherm instrumentation that support Profibus DP or Profibus DPv1.

Use standard GSD instrument file or; drag and drop to generate custom GSD files - no knowledge of GSD file structure required!

Contact us for technical support at 800-849-5655 or send us a note.

It features a broad range of AC and DC command signals with a front face LED to display the input status.
The solution that will help you to save money!

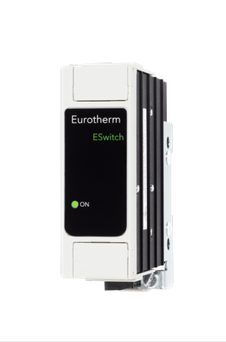

Mechanical contactors controlling heating elements may operate three million times per year. The lifetime of these contactors is between 1 and 3 years; therefore they need to be replaced regularly during the typical life of an industrial machine.

ESwitch is an interesting solution to solving this problem. The lifetime is significantly extended because the contact is electronic. Its wiring is as simple as for a mechanical contactor and the mounting is very easy: just clip it on a DIN rail! It features a broad range of DC and AC command signals with a front face LED to display the input status to help diagnostics and commissioning.

Extend the life of your heaters

Tests performed by a well-known heater supplier have shown that heaters can last up to 7 times longer when used with a solid state contactor (SSC). Faster on/off cycle times cause less thermal expansion and contraction and thus reduce breakage due to thermo-mechanical stress and fatigue. So by preserving the heating elements, ESwitch will allow you to maximize your return on your investment (ROI):

Increase lifetime of heating elements​
Reduce downtime

Minimize scrap
Improve yield and productivity
By combining security of operations with simplicity of integration, robustness, ESwitch offers the best ratio of performance versus price for the power switches market.

Ideal for
Multi-zone heating
Autoclaves
Ovens
Injection molding
Thermo-forming

See the chart below for features of the ESwitch as well as other Eurotherm Power Products.
Eurothermonline.com is the best place to meet all of your Eurotherm instrument and power product needs.

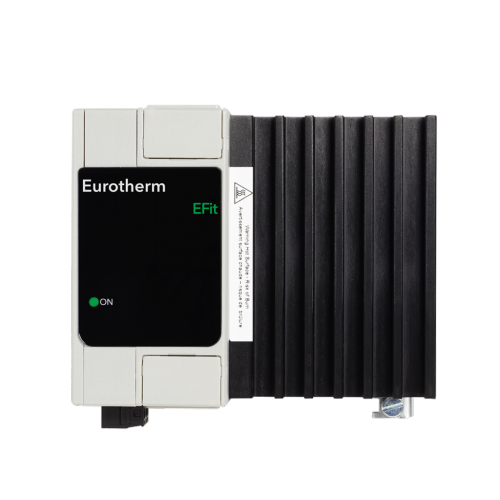

Highly cost effective, yet easy to integrate and commission, the EFit power controller provides no compromise control for infrared heating and resistive elements.

For simple heating applications it is the perfect fit

Some Industrial processes require precise temperatures in order to comply with regulations and it is imperative that the workpiece temperature is kept within specific limits, such as heat treatment. This may be difficult to achieve in factories where the operation of large machinery can cause fluctuations in the voltage supply. Undesirable temperature fluctuations can be caused by resistive heaters, which may variation up to 10% in the supply voltage and will generate a 20% variation in the power to the load. The EFit contains built in compensation that continues to apply stable power with better than ±2% linearity at the boundaries of the load, even during fluctuations in the supply. The result is repeatable heating process and a reliable high quality end products, which is compliant to demanding heat treatment standards.

Click here to build your own product.

Don’t see what you need, then call 800-849-5655 or email us esales@peproducts.com for further details.

Eurotherm 2408F Controller/Programmer with the Profibus Option. 48mm Wide x 96mm High x 150mm Deep. The 2408 is a versatile, high stability temperature or process controller. Features & Options: Dual Display, Self-Tuning, Universal Inputs, Modular design allows for the potential of up to 4 outputs, 2 digital communications, and program & segment options.
Buy on line and save

***Free Shipping on Eurotherm Orders over $500 (Continental United States only)***

All these impressive features are easily configured and managed by GUIcon software package, which includes an extensive library of more than 5000 objects.

Choose from a list with over 200 drivers for a variety of devices. Access them REMOTELY and Communicate with up to 13 of them SIMULTANEOUSLY.

FEATURES:
Two Ethernet ports
Two USB ports
Convert over 200 protocols
Built-in web server
Remote monitoring & control
Free software and support
Click here to download a full PenGUin brochure.

Powerful Hardware Platform
One RS-422/485 port and two RS-232 ports are standard on all models
Simultaneous communication with a minimum of 13 different protocols (expandable)
Optional expansion cards to add either two serial ports, DeviceNet™, CANopen, J1939, PROFIBUS DP™ or a cellular modem
Dual Ethernet port provides communications separately to the factory floor and enterprise
The PenGUIn has plenty of options
Protocol Conversion
Easily manage multi-vendor environments
Convert over 200 major industrial protocols
Drag-and-drop data mapping via GUIcon1.0
Gateway from any protocol to another

Data Logging
Acquire data at user-defined rates from any or all connected devices into a single file
Data stored in open CSV file format (Excel compatible)
Collect, store, display data
Email or FTP logged files

Web Serving
Auto-uploads data to FTP, web pages and/or dashboards
Web and network-enable any and all connected devices
Display same as panel, just tags or custom pages
We have a full range of Eurotherm products!
Contact us esales@peproducts.com 800-849-5655

Eurotherm is a leading global supplier of Industrial Automation and process control, measurement and data management solutions and services. Innovative products and solutions are designed to bring real benefits to customers by optimizing processes, operations and plant efficiency.

Decades of experience in providing world-class process control, recording and automation are supported by a continuous research and development program to ensure Eurotherm’s solutions meet the modern challenges faced across a wide range of industries. Customers are fully supported by a highly qualified personnel who understand the applications and industries we serve.

A wide range of products is rich in features and designed for easy operation and reduced engineering time. They contain market-leading control algorithms, recording and data management strategies which add value to industrial processes, reducing waste, improving quality and ensuring data is kept safe for as long as it is needed.

Call or email us to discuss your specific needs 800-849-5655 esales@peproducts.com

EPack-2PH compact SCR power controllers
Three phase 2 leg control

EPack-1PH compact SCR power controllers




OEMs and system integrators need to be able to react quickly to customer needs while maximizing resources. Whether designing a new process  or replacing an existing product, the design of the EPack™ power controller has been carefully considered for easy and fast  panel installation, commissioning and integration into wider systems.  This lowers equipment costs, and manufacturing times for you and your customers.

End Users continually need to improve operational productivity and efficiency. EPack power controllers can deliver real savings, significantly reducing your energy costs. Get the best from your operations; easy and quick to install, commission. A compact size doesn’t compromise powerful and versatile features that minimize costs and improve quality and productivity.

EPack 3-PH is the ideal solution for the control of all kinds of loads. The control of each phase ensures accurate control, even if the loads are unbalanced). The currents and voltage measures also allow a high level of diagnostics, which can be used for alarm management as well as monitoring (impedance, energy counter, reactive power).

EPack 2-PH is the latest generation of power controllers designed to be a cost effective solution for the control of 3 phase loads. The 2 leg control is particularly adapted to the control of balanced loads, directly, or through transformers. Burst firing avoids generation of harmonics and reduces the consumption of reactive power.

EPack 1-PH power controllers are designed to carry currents from 1 to 125 amps, with operating voltage between 100 and 500 Volts

The configurability  and scalability of EPack fits with the requirements of each application. A wide range of alarms can quickly identify a controller detected fault which reduces downtime.

Key Features:

• Nominal load current from 1 amp to 125 amps
• Compact DIN Rail and bulkhead mounting
• Voltage up to 500V
• Configurable via front panel or Eurotherm software (iTools)
• V2 , I2 or True power control
• Energy usage measurement
• Plug and play Ethernet communications with Zero configuration networking (zeroconf)
• Controls comprehensive range of loads: resistive, infrared, transformer primary, silicon carbide
• Advanced load diagnostics
• Modbus® TCP or Ethernet IP protocols
• Integrated dual port Ethernet switch for “daisy chained” communications
• Defend OEM knowledge and IP (OEM Security)

Recorder/Controller offers graphical recording combined with PID control. Features & Options: 4 universal inputs, up to 2 PID loops, outputs and digital communications. Options must be specified when ordered.

Ordering options are

In it’s a box size the nanodac™ recorder/controller offers the ultimate in graphical recording combined with PID control. The compact ¼ DIN panel mount unit offers 4 high accuracy universal inputs for data recording and PID control. This secure data recording device with accurate control is enhanced by a full color, ¼ VGA display to bring a crystal clear operator interface to even the smallest of machines.

Its modular design enables its I/O and feature set to be selected to meet a wide range of applications from simple to complex.

The ideal partner to a programmable logic controller (PLC) is the Mini8 controller. It is able to multi-drop on either serial, Ethernet or Fieldbus communications and it offers a real, cost-effective alternative to performing loop control or analog measurement in a PLC.

By implementing these functions in the Mini8 controller hardware cost is reduced, relieving the PLC of the burden of performing analog functions - often allowing a lower specification processor to be used.

The feature set of the Mini8 controller includes graphical wiring, high performance PID control, and set-point programming functions together with logic, math and timing function blocks.

When used in a data acquisition installation the high density analog I/O can be combined with paperless graphic recorder products, like the Nanodac to provide unsurpassed local and network access to your process.

The 2408i provides accurate measurement with flexible functions. Accurate, stable measurement of temperature, pressure, level, flow and other process variables are provided by the 2408i. An optional second process value input allows the average, difference, minimum or maximum of two values to be displayed. Large, bright, red or green displays ensure good visibility in high and low ambient lighting.

The 1/8 DIN Eurotherm 2408i makes process and temperature measurements easy by providing alarming and indication functions. Relay outputs are used to implement process interlocks, such as over temperature furnace limits.

• Extrusion melt pressure indication and alarming
• Modular construction offering increased I/O flexibility
• Second process input provide additional alarming strategies
• Furnace over temperature limits
• Large 5 digit display providing excellent visibility
• Fieldbus communications providing system integration

The unit helps users select from the 9 available sensor types that are store internally, with its universal input capability. Users can scale linear input as desired. For more input linearizations, users can use iTools for download. Indication of non-linear signals is achieved using the 15 point linearization.

The process value is clearly displayed on the green or red 5 inch display. For displaying and alarming on the maximum, minimum, average, and difference of two values, the second process input can be used.

The unit provides great flexibility by allowing the attachment of up to 3 I/O modules from the available 9. Conventional analog retransmission or digital communications can be used to achieve system integration.

Applications include:

• Plastics processing - Extrusion melt pressure
• Heat treatment - Furnace over temperature
• Temperature & process indication
• Process protection
• Weighing platforms

Features:

• Universal input
• Profibus DP
• Strain gauge input
• Serial Modbus™ comms
• Red or green display
• Process variable retransmission
• Devicenet

A universal input enables selection of nine internally stored thermocouple types and the PT100 resistance thermometer. Linear inputs can be scaled to the desired display range. Two relay outputs are configurable for alarms. Three internal alarm setpoints are provided- configurable as high, low or deviation. Alarms can be 'blocked' on start-up to prevent unnecessary operator alerts.

2100 Series Controller
The compact Eurotherm, 1/32 DIN panel size, 2132 temperature controller uses advanced PID algorithms to give stable temperature control. Specialist knowledge or training is not needed to optimize the control performance, because Self-tuning is included.

• Simple operation
• Three internal alarms
• Up to two relay outputs
• One logic input or output
• Reliable performance and accuracy
• Internal timer - a 5 mode timer suitable for simple time based profiling applications
• Universal input - 9 thermocouple types, PT100, DC linear and a downloadable custom curve

Universal input/two outputs
Linear inputs can be scaled to the desired display range. A universal input enables selection of nine internally stored thermocouple types and the PT100 resistance thermometer. Other input linearizations may be factory downloaded. Two outputs are configurable for heating, cooling or alarms.

Operator interface
The operator interface can be customized to present only those parameters that an operator needs to see and adjust, while other parameters are locked away under password protection.

Internal alarm set points
Alarms can be 'blocked' on start-up to prevent unnecessary operator alerts. Three internal alarm set points are provided - configurable as high, low or deviation alarms.

Heater failure can be detected using PDSIO when the controller is used with a TE10S Solid State Relay - this negates the need to use extra components such as current transformers.

Internal timer
A five-mode timer is provided for simple, time-based profiling applications. Ideal for:

• Trace heating
• Sterilizers
• Chillers
• Plastics - extrusion
• Heat treatment -small ovens
• Heat sealing

Features:

• Customized operator interface
• Three internal alarm set points
• Universal input selection
• Two configurable outputs
• Heater failure detection
• Tactile buttons

The 3508 large 5-digit display provides a clear and unambiguous indication of the process value. A four-line message centre provides custom or standard views of important information to the user while vertical and horizontal bargraphs provide at a glance visual indication of the process.

The Eurotherm 3508 is a 1/8 DIN process controller belonging to the most advanced range of products in this category. It offers precision control of a range of process variables, such as temperature. It has advanced features that offer great flexibility.

For configuring basic functions, including control options, alarms, sensor type, and measurement range a 'Quick Start' process can be used. The unit combines flexibility with ease of use. For configuring advanced features, users can use a PC based tool that allows them to select functions from a library.

Ideal for:
Semi-conductors
Process applications
Reactors and Fermenters
Autoclaves
Environmental chambers
Melt pressure
Heat Treatment

Features:
Precision PV input
Math/logic/timers
Modbus RTU
Recipes
50 Programs
Carbon potential
Ethernet Modbus TCP
2 PID loops
Custom user interface
Profibus DPDeviceNet network

Here’s an outline that describes the status messages for the Eurotherm 2704 Multi Loop Controller. These messages appear on the display to show the status of the controller.

The Eurotherm 3216 is Quick and easy commissioning - no need for expert knowledge. Clear information of process with scrolling, custom messages. Custom alarm messages for easy understanding. Recipe selection from operator interface. Internal timer and set point programming. Instant indication of heater faults with integral ammeter. Remote set point - solution for multi-zone applications.

The Eurotherm 3216 controller comes with many advanced features that are not available that are commonly available in similar controllers. It provides precision control of process variables like temperature.

A current transformer input provides display of the heater current and a health check on the load. Partial load failure, heater open circuit and SSR faults are detected and displayed as scrolling alarm messages as well as providing an alarm output. A front panel ammeter displays the heater current on the 3204.

The “EPACK-2PH” and “EPACK-3PH” has been added to the Power Control section of our Eurothermonline store. For those who wish to upgrade their furnaces or heating equipment from analog to digital SCRs, the EPack is the perfect solution for OEMs and End Users.

The 3508 large 5-digit display provides a clear and unambiguous indication of the process value. A four-line message centre provides custom or standard views of important information to the user while vertical and horizontal bargraphs provide at a glance visual indication of the process.

The Eurotherm 3508 is a 1/8 DIN process controller belonging to the most advanced range of products in this category. It offers precision control of a range of process variables, such as temperature. It has advanced features that offer great flexibility.

For configuring basic functions, including control options, alarms, sensor type, and measurement range a 'Quick Start' process can be used. The unit combines flexibility with ease of use. For configuring advanced features, users can use a PC based tool that allows them to select functions from a library.

Ideal for:
Semi-conductors
Process applications
Reactors and Fermenters
Autoclaves
Environmental chambers
Melt pressure
Heat Treatment

Features:
Precision PV input
Math/logic/timers
Modbus RTU
Recipes
50 Programs
Carbon potential
Ethernet Modbus TCP
2 PID loops
Custom user interface
Profibus DPDeviceNet network

"The Mini8 controller is an ideal partner to a programmable logic controller. Able to multi-drop on either Serial, Fieldbus or Ethernet communications. It offers a cost-effective alternative to performing analogue measurement or loop control in a PLC." The Mini8 Controller, a very competitive and compact data acquisition device, offers high performance control usually only found in Eurotherm panel mount PID controllers.

Its modular design enables its I/O and feature set to be selected to meet a wide range of applications from simple to complex.

The ideal partner to a programmable logic controller (PLC) is the Mini8 controller. It can multi-drop on either serial, Ethernet or Fieldbus communications and it offers a real, cost-effective alternative to performing loop control or analog measurement in a PLC.

By implementing these functions in the Mini8 controller hardware cost is reduced, relieving the PLC of the burden of performing analog functions - often allowing a lower specification processor to be used.

The feature set of the Mini8 controller includes graphical wiring, high performance PID control, and set-point programming functions together with logic, math and timing function blocks.

When used in a data acquisition installation the high density analog I/O can be combined with paperless graphic recorder products, like the Nanodac to provide unsurpassed local and network access to your process.

The Eurotherm nanodac™ provides the ultimate in graphical recording combined with PID control and setpoint programs.
The compact ¼ DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control. It is a secure data recording device with accurate control and is enhanced by a full color, ¼ VGA display which brings a crystal clear operator interface to even the smallest of machines.

YouTube video https://www.youtube.com/watch?v=ufDyyx9P7N4

PID Control Loops
The nanodac™ instrument can also provide two independent control loops (optional). This control functionality utilizes the advanced Eurotherm PID algorithm providing high performance and reliability to your process. It has one of the best auto-tunes facilities available along with overshoot inhibition (cutbacks); compensation for power fluctuations using power feedforward; linear, fan, oil and water cooling.

In the Heat Treatment processes set-points often need to vary control process over a set period of time. So this is achieved by using a set-point program.

The nanodac™ offers an optional Dual Programmer supporting up to 100 programs locally, each program supporting 25 segments.

The nanodac™ also provides remote access to a further 100 programs that can be easily retrieved via FTP or USB memory stick.

Ther display is crystal clear
The 3.5” TFT display offers incredibly clear visualization of process parameters with a wide selection of configurable views to best suit the application. You gave the following views: Numeric; Horizontal and vertical trends; Horizontal and vertical bar graphs; Alarm panel, Alarm status, and control loops. User wiring from the front of the product, provides for detailed configuration without the need to connect to a PC.

Wash down Front
An optional IP66 rated Wash-down bezel has been made available in this release, making the nanodac™ suitable for applications in Food & Beverage or CIP/SIP.

Server mode or EtherNET/IP Client
As an option the nanodac™ recorder/controller can be easily integrated with an existing instrument network, and act as local data historian. When enabled, EtherNet/IP allows the nanodac™ to act as either a Server or a Client, and (via virtual channels) provides data recording for up to 30 process parameters.

EtherNet/IP provides two user pages: the first is a diagnostics page that can be used during initial setup and commissioning, to test the connection, between the Client and or Server. The second is an overview of all the process parameters (data points) being addressed via the communications.

Data Recording and Acquisition
The nanodac™ recording functionality utilizes the secure strategies and UHH format developed by Eurotherm through years of recording expertise. As well as multiple real-time views and historical review on the product, multiple data archiving strategies are provided using the 50MB onboard Flash memory, removable USB and data transfer via FTP to a specified server.

The four universal input channels provide high accuracy (suitable for use in Nadcap applications) and 125ms parallel sampling. An additional 30 virtual channels can be utilized to provide math, counter, slave communications and totalizer functionality within the instrument.

3 x Isolated DC Outputs (DDD)
This release provides support for Isolated DC Outputs in option slots OP1, OP2 and OP3. Please refer to the Installation sheet or User Guide for wiring instructions. The Eurotherm nanodac™ provides the ultimate in graphical recording combined with PID control and setpoint programs.
The compact ¼ DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control. It is a secure data recording device with accurate control and is enhanced by a full color, ¼ VGA display which brings a crystal clear operator interface to even the smallest of machines.

YouTube video https://www.youtube.com/watch?v=ufDyyx9P7N4

PID Control Loops
The nanodac™ instrument can also provide two independent control loops (optional). This control functionality utilizes the advanced Eurotherm PID algorithm providing high performance and reliability to your process. It has one of the best auto-tunes facilities available along with overshoot inhibition (cutbacks); compensation for power fluctuations using power feedforward; linear, fan, oil and water cooling.

In the Heat Treatment processes set-points often need to vary control process over a set period. So this is achieved by using a set-point program.

The nanodac™ offers an optional Dual Programmer supporting up to 100 programs locally, each program supporting 25 segments.

The nanodac™ also provides remote access to a further 100 programs that can be easily retrieved via FTP or USB memory stick.

Their display is crystal clear
The 3.5” TFT display offers incredibly clear visualization of process parameters with a wide selection of configurable views to best suit the application. You gave the following views: Numeric; Horizontal and vertical trends; Horizontal and vertical bar graphs; Alarm panel, Alarm status, and control loops. User wiring from the front of the product, provides for detailed configuration without the need to connect to a PC.

Wash down Front
An optional IP66 rated Wash-down bezel has been made available in this release, making the nanodac™ suitable for applications in Food & Beverage or CIP/SIP.

Server mode or EtherNET/IP Client
As an option the nanodac™ recorder/controller can be easily integrated with an existing instrument network, and act as local data historian. When enabled, EtherNet/IP allows the nanodac™ to act as either a Server or a Client, and (via virtual channels) provides data recording for up to 30 process parameters.

EtherNet/IP provides two user pages: the first is a diagnostics page that can be used during initial setup and commissioning, to test the connection, between the Client and or Server. The second is an overview of all the process parameters (data points) being addressed via the communications.

Data Recording and Acquisition
The nanodac™ recording functionality utilizes the secure strategies and UHH format developed by Eurotherm through years of recording expertise. As well as multiple real-time views and historical review on the product, multiple data archiving strategies are provided using the 50MB onboard Flash memory, removable USB and data transfer via FTP to a specified server.

The four universal input channels provide high accuracy (suitable for use in Nadcap applications) and 125ms parallel sampling. An additional 30 virtual channels can be utilized to provide math, counter, slave communications and totalizer functionality within the instrument.

3 x Isolated DC Outputs (DDD)
This release provides support for Isolated DC Outputs in option slots OP1, OP2 and OP3. Please refer to the Installation sheet or User Guide for wiring instructions.

The PG10 Operator Interface Terminal combines unique capabilities normally expected from high-end units but at a very affordable price. It is built around a high-performance core with integrated functionality. This core allows the PG10 to perform many of the normal features of the Paradigm range of Operator Interfaces while improving and adding new features.

The PG10 can communicate with many different types of hardware using high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100 Base-TX communications. In addition, the PG10 features a USB port for fast downloads of configuration files and access to trending and data logging. A CompactFlash socket is also given so that Flash cards can be used to collect your trending and data logging information as well as to store larger configuration files.

In addition to accessing and controlling external resources, the PG10 allows a user to easily view and enter information. Users can enter data through the touchscreen or front panel 8-button keypad.

A universal input enables selection of nine internally stored thermocouple types and the PT100 resistance thermometer.  Linear inputs can be scaled to the desired display range. Two relay outputs are configurable for alarms. Three internal alarm setpoints are provided- configurable as high, low or deviation. Alarms can be 'blocked' on start-up to prevent unnecessary operator alerts.

The 1/32 DIN Eurotherm 2132i temperature and process controller comes with indication and alarming capabilities. Relay outputs can be used to implement over temperature furnace limits and other such process interlocks.

Fully configurable using operator interface
Alarm blocking on start-up
Simple operation
Reliable performance and accuracy
The PT100 resistance thermometer and nine thermocouples that are stored internally are available for selection with the universal input. Users can download other input linearizations. Based on the display range, linear inputs can be scaled accordingly.

There are three internal alarm set points that can be configured as deviation, high, or low alarms. Users can block the alarms on start-up to avoid unwanted alerts.

Users can expect positive operation with the presence of tactile buttons.

Based on the parameter the operator wants to see and adjust, the operator interface can be accordingly customized. Other parameters can be put under password protection.

Ideal for:
Plastics - extrusion
Heat treatment -small ovens
Sterilizers
Chillers
Trace heating
Heat sealing

Features:
Three internal alarm set points
Two configurable outputs
Universal input selection
Heater failure detection
Customized operator interface
Tactile buttons

The Eurotherm 32h8i indicators offer accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.

It is all about how conveniently the device can be used. The user can configure every function based on the needs of the process with the 'Quick Start' code. Indications have to be defined to set process limits.

Eurotherm 32h8i indicator and others in the 3200i series precisely indicate process and temperature measurements. Relay output channels are used to implement over temperature furnace limits and other process interlocks.

Best for:
Weighing platform
Temperature & process indication
Plastics - extrusion melt pressure
Process protection
Level/pressure/flow
Heat treatment - furnace over temperature

The Eurotherm 3216i indicators offer accurate indication of temperature and process measurements. Process interlocks, including overtemperature furnace limits, are implemented using relay output channels.

Industrial environments can do with instruments with simple usage. The same is available with Eurotherm 3216i and other indicators in this range.

Whether it concerns the indication of the breach of set limits or the protection of your process, you can use the 'Quick Start' code configure all the functions as you need them. When you need to implement process interconnections like over temperature furnace limits, you can use the provided relay output channels.

Uses:
Plastics - extrusion melt pressure
Level/pressure/flow
Weighing platform
Heat treatment - furnace over temperature
Temperature & process indication
Process protection

• HEATSK-DIN-1.0
• I.O.-JUMPER-010
• I.O.-MARKER-011
• IO-IAC/+RO/280
• IO-IDC/+RO/28
• RSAA-660/50/10
• RVA3-6V75T/H
• SVAA-3V10
• SVDA-3V10
• SVDA-3V25
• SVDA-3V75

The Eurotherm EFit power controller is easy to commission and integrate. It is cost effective, but don’t provide any compromise in the control of resistive and infrared heating elements.

Cost effective and exceptional process performance
EFit is compliant with international standards of immunity, quality, and emissions, and can be used for all heating applications. The unit delivers precise control even in the most extreme industrial conditions, such as limited cabinet space.

Perfect for simple heating applications
Heat treatment and other such industrial processes need accurate temperatures to comply with regulations. However, this isn’t possible to achieve in a large industrial plant where fluctuations in voltage is a common phenomenon. If we consider resistive heaters, 20% variation in the power to the load can be caused with a variation of 10% in the supply voltage. This can cause unwanted temperature fluctuations. The EFit power control unit continues to deliver a uniform flow of power supply, even when there are voltage fluctuations. This will result in a continuous and reliable heating process that delivers products that comply with heat treatment standards.

Easy Installation

• Minimal connection — pre-wired plug in connectors
• Nothing to fix — just clip onto DIN rail
• Nothing to configure — plug and play

Control precisely

• Eliminate voltage fluctuations
• Achieve tight tolerances
• Optimize energy use

Improve processes

• Minimise downtime
• Maximise throughput
• Reduce cost of ownership

The method for automatic tuning automatically determines the value of the parameters listed in table 4-1 in the image above. The 2208e and 2204e uses a “one-shot” tuner in which works by switching the output on and off to induce an oscillation in the measured value. From the amplitude and period of the oscillation, it calculates the tuning parameter values.

If the tuning process cannot tolerate full heating or cooling being applied, then the level of heating or cooling can be restricted by setting the heating and cooling power limits in the Output list. However, the measured value must oscillate to some degree for the tuner to be able to calculate values.

A one-shot Tune can be performed at any time but normally, it is performed only once during the initial commissioning of the process. However, if the process under control subsequently becomes unstable (because its characteristics have changed), you can re-tune again for the new conditions.

It is best to start tuning with the process at ambient temperature. This allows the tuner to calculate more accurately the low cutback and high cutback values that restrict the amount of overshoot or undershoot.

The Eurotherm 2108i horizontal mount indicator and alarm unit provides accurate measurement and display of temperature and other processing variables in a standard 1/8 DIN panel format. The two alarm relay outputs are provided for an operator alert and process protection.

A universal input allows selection of nine internally stored thermocouple types. Other input linearization may be factory downloaded. Linear, process inputs are scalable to the desired range.  Keylock and passwords prevent unauthorized access to configuration and alarm settings.

A large, red, or green LED display gives good visibility in low and high ambient lighting.

New alarms can be acknowledged and old alarms reset by a front panel button or an external contact closure input.

Three internal alarm setpoints are provided. They are configurable as high, or low, or rate of change alarms. Any combination of these three internal alarms can activate the two relay outputs. Latching or non-latching operation can be selected and alarm delays can be applied. A special mode known as “alarm blocking” is available. In this mode, after power on, the process value must first enter a good state before the alarm becomes active. This is particularly useful for low alarms which can be “blocked” while the process is warming-up.

Calibration accuracy is preserved with a self-correcting input circuit, while a User Calibration facility allows offsets to be applied to compensate for sensor and other system errors.

The 3504 controller is supplied in the standard ¼ DIN size (96 x 96mm front panel). The 3504 Controller contains up to six plug-in hardware modules; the 3508 Controller has up to three. Moreover, digital communications modules can be fitted in two positions.

These modules provide an interface to a wide range of plant devices and those fitted to it are identified by an ordering code printed on a label to the side of the instrument. This code defines the basic functionality of the instrument which may be:

• Controller only
• Programmer and controller
• Control type – Standard PID, valve positioner
• Digital communications type
• Options

• A one-shot tuner which automatically sets up the initial values of the parameters listed in Table 4-1 below.

• Adaptive tuning which continuously monitors the error from setpoint and modifies the PID values if necessary.

One-shot Tuning:
The ‘one-shot’ tuner works by switching the output on and off to induce an oscillation in the measured value. From the amplitude and period of the oscillation, it calculates the tuning parameter values. If the process cannot tolerate full heating or cooling being applied during tuning, then the level of heating or cooling can be restricted by setting the heating and cooling power limits in the ‘oP’ list.
However, the measured value must oscillate to some degree for the tuner to be able to calculate values. A One-shot Tune can be performed at any time, but normally it is performed only once during the initial commissioning of the process. However, if the process under control subsequently becomes unstable (because its characteristics have changed), you can re-tune again for the new conditions.
It is best to start tuning with the process at ambient temperature. This allows the tuner to calculate more accurately the low cutback and high cutback values which restrict the amount of overshoot, or undershoot.

How to tune
1. Set the setpoint to the value at which you will normally operate the process.
2. In the ‘Atun’ list, select ‘tunE’ and set it to ‘on’.
3. Press the Page and Scroll buttons together to return to the Home display. The display will flash ‘tunE’ to indicate that tuning is in progress.
4. The controller induces an oscillation in the temperature by first turning the heating on, and then off. The first cycle is not complete until the measured value has reached the required setpoint.
5. After two cycles of oscillation the tuning is completed and the tuner switches itself off.
6. The controller then calculates the tuning parameters listed in Table 4-1 above, and resumes normal control action. If you want ‘Proportional only’, ‘PD’, or ‘PI’ control, you should set the ‘ti’ or ‘td’ parameters to OFF before commencing the tuning cycle. The tuner will leave them off and will not calculate a value for them.

Typical automatic tuning cycle

Calculation of the cutback values
Low cutback and High cutback are values that restrict the amount of overshoot or undershoot that occurs during large step changes in temperature (for example, under start-up conditions). If either low cutback, or high cutback, is set to ‘Auto’ the values are fixed at three times the proportional band, and are not changed during automatic tuning.

Adaptive tune
Adaptive tuning is a background algorithm, which continuously monitors the error from setpoint and analyses the control response during process disturbances. If the algorithm recognizes an oscillatory, or under-damped, response it recalculates the Pb, ti and td values. Adaptive tune is triggered whenever the error from setpoint exceeds a trigger level. This trigger level is set in the parameter ‘drA.t’, which is found in the Autotune list. The value is in display units. It is automatically set by the controller, but can also be manually re-adjusted. Adaptive tune should be used with:

1. Processes whose characteristics change as a result of changes in the load, or setpoint.
2. Processes that cannot tolerate the oscillation induced by a One-shot tune.

Adaptive tune should not be used:
1. Where the process is subjected to regular external disturbances that could mislead the adaptive tuner.
2. For highly interactive multi-loop applications.

However, moderately interactive loops, such as multi-zone extruders, should not give a problem.

MANUAL TUNING
If for any reason automatic tuning gives unsatisfactory results, you can tune the controller manually. There are a number of standard methods for manual tuning. The one described here is the Ziegler-Nichols method.

With the process at its normal running temperature:
1. Set the Integral Time ‘ti’ and the Derivative Time ‘td’ to OFF.
2. Set High Cutback and Low Cutback, ‘Hcb’ and ‘Lcb’, to ‘Auto’.
3. Ignore the fact that the temperature may not settle precisely at the setpoint.
4. If the temperature is stable, reduce the proportional band ‘Pb’ so that the temperature just starts to oscillate. If the temperature is already oscillating, increase the proportional band until it just stops oscillating. Allow enough time between each adjustment for the loop to stabilize. Make a note of the proportional band value ‘B’ and the period of oscillation ‘T’.
5. Set the Pb, tiand td parameter values according to the calculations given in

The 3508 controller is supplied in the standard 1/8 DIN size (48 x 96mm front panel).

It is intended for permanent installation, for indoor use only, in an electrical panel, which encloses the rear housing, terminals and wiring on the back.

The functionality of controller depends on the features which have been ordered, see order code Section 1.2 below. Examples are:-

Programmer. A programmer varies the rate of change of setpoint allowing a profile to be set up.

Plug in modules. These provide customized input/output to plant devices.
The functionality of the controller also depends on how it has been configured. When it is first supplied the controller will enter a Quick Configuration mode which allows a basic set of features to be set up operation ‘out of the box’.


Further detailed configuration may be achieved either by using iTools configuration package or entering deeper levels of access. An Engineering Handbook, Part no. HA027988, provides a detailed description together with an explanation of terminology and may be ordered or downloaded from http://eurothermonline.com/instrumental-manuals/3500-series-manuals-and-brochures/

Section 1.2 Ordering Codes
The controller may have been ordered in accordance with the hardware code listed below. Additionally, it may have been ordered by quoting the ‘Quick Code’ listed in section 1.3. If ordered to the quick code the controller will be configured in the factory. If it is not ordered using the quick code then it will be necessary to configure the controller when it is first switched on.


Section 1.3 Quick Codes  Use the tables below to determine your quick start code

To get assistance with ordering code, please call our office 800-849-5655, or use this form to contact us.

With the rapidly changing glass panels industry for cars, the complexity of shape and integration of sensors has been critical. As more demands for more stringent tolerances and the introduction of more complex forms and shapes, the automobile production process for glass panels has become extremely complex.

For example in a Tunnel Furnace where hundreds of sub zones, requiring precise and complex temperature control, running multiple recipes to allow maximum production, flexibility is a necessity. Resistive elements as well as medium wave infrared heaters have to be controlled to very tight parameters while maximizing energy efficiency.
Around the world, Eurotherm temperature control, power control and supervisory systems for windscreen forming are in operation. They provide:

• Accurate open or closed loop power control
• Accurate multi-zone temperature control
• Power control set point transfer and monitoring by digital communication, reducing the I/O requirements of the control system
• Feed through control
• Advanced single cycling for infra-red elements, eliminating DC components
• Track and Trace capability

In power glass applications, Eurotherm has always been present and successful:

• Bottle manufacturing: boosting, feeder heating
• Windscreen forming
• Flat glass: roof heating, annealing
• Glass wire manufacturing: boosting, feeder heating, bushing

The principle of windscreen forming is that the flat windscreen is going through a tunnel furnace on a very precise form. There is one type of form per type of windscreen. When at the right temperature, assisted by gravity the soft glass will take accurately to the form.

The pre-heating zone is the first part of the furnace where the temperature accurately controlled. The second part is the forming zone with a precise electrical power control. Heating elements are metallic resistors, medium wave infra-red, with a low temperature coefficient. Heat transfer to the windscreen is a combination of infra-red emission and air heating.

The quality and precision of the windscreen banding is given by the accuracy of forming zone power control and the accuracy of the pre-heating zone temperature controls.

On these furnaces, the number of zones can be very high, 100 to 300 zones. Present tendency is to increase the number of zones to improve precision of banding and to manufacture more complicated and various windscreen shapes. The total power of such furnaces can be several hundred kW to several MW.

Architecture of the installation

• The electrical control architecture of the installation is as follows:
• A PLC supervisory system is controlling the furnace: temperature in pre-heating, zone, power informing zone.
• Heating elements power control is made with multi-channel communicating power units, EPower Series for both forming and pre-heating zones.
• Firing mode: single cycle.
• Control mode: precise power U x I, very important for banding accuracy.
• Through communication link (Modbus or Profibus depending on type of PLC), all EPower parameters are available (read and write) on the supervisory system: load output, power set point, status word/alarms.

Millisecond set point transfer
On the furnace forming part, during process time each windscreen stays in a heating zone; its next working set point, for the next heating zone it will move into, is loaded in each EPower channel. When all the windscreens reach their next heating zone, a single command through the communication link will transfer in a few milliseconds all pre-loaded set points for each zone as an active set point.

Use this Eurotherm solution to your advantage

• Perfectly adapted for this application is the Thyristor firing mode: single cycle.
• Power control mode for a better process control
• Avoids peak power demands with Predictive Load Management (PLM).
• Reduce installation cost with multichannel EPower: floor space saving and smaller panels, lower cost per channel.
• Very good accuracy of EPower power control U x I: absolutely necessary to Communication
• Installation costs are reduced (wiring, cabinetry, etc.).
• Process control efficiency and quality are improved.

Checkout all our power controls at http://eurothermonline.com/power-controls.htmlhttp://eurothermonline.com/power-controls.html

They have a modular hardware construction which accepts up to three plug-in Input/Output modules and two interface modules to satisfy a wide range of control requirements. Two digital inputs and an optional alarm relay are included as part of the fixed hardware build. The instruments are available as:

• standard controllers - which include a basic 8-segment programmer Models 2408/CC and 2404/CC
• setpoint programming controllers: Models 2408/CP, P4, CM and 2404/CP, P4, CM
• motorized valve controllers - which include a basic 8-segment programmer Models 2408/VC and 2404/VC
• setpoint programming motorized valve controllers: Models 2408/VP, V4, VM and 2404/VP, V4, VM



Before proceeding, please read the Safety and EMC Information as follows:

This controller complies with the European Low Voltage Directive 2006/95/EC, by the application of the safety standard EN 61010.  It is intended for industrial temperature and process control applications when it will meet the requirements of the European Directives on Safety and EMC. Use in other applications, or failure to observe the installation instructions of this handbook may impair the safety or EMC protection provided by the controller. It is the responsibility of the installer to ensure the safety and EMC of any particular installation.

The labels on the sides of the controller identify the ordering code, the serial number, and the wiring connections.

Understanding the Ordering Code
The 2408 and 2404 controllers have a modular hardware construction, which accepts up to three plug-in Input/Output modules and two communications modules to satisfy a wide range of control requirements. Two digital inputs and an optional alarm relay form part of the fixed hardware build. The ordering code is in two parts. The hardware coding and an optional configuration coding. The hardware coding specifies the basic build of the controller and the plug-in modules that are fitted

Let’s describe how the nanodac can be used to control the dosing level of a liquid or gas using the Feedforward feature of the PID algorithm to achieve an output proportional to the flow rate of the fluid.

Data Recorder with PID Control
The nanodac recorder/controller provides combined recording and control in a single ¼ DIN package.

The Nanodac is ideal for use on any application requiring up to four real universal inputs. In addition, fourteen inputs can also be written to over communications effectively making an 18 channel data logger. It also contains 2 PID control loops, which can be configured to control temperature, pressure, level, and process variables such as flow, etc,.

Additionaly, the nanodac recorder provides powerful logging and secure archiving of the data. It can store information in either or a secure (UHH), or open CSV format, or a check summed format to protect data integrity.

Also available is live trending, a simple menu allows any selected portion of the recorder history to be archived, either to a ‘memory stick’ plugged into the USB port at the rear of the recorder (Local Archiving) or to a computer or server, by means of the FTP protocol (Remote Archiving). This archived data remains in the flash (50MB) memory of the instrument and can be reviewed directly on the instrument display.

Archive period between the last hour, last day, last week, last month, can be chosen. Also one can archive everything in the recorders history or archive all files created since or updated since the last archive.

The archive status is displayed on the nanodac recorder/controller, which shows when data is being transferred or is complete. The archive data includes actual values from real or communications channels (PV), Alarm Messages, and Operator Input Messages. All of this information is accurately dated and time stamped from the on-board real time clock.

Residual control (Dosing)
Dosing or residual control, as it is also known, is the nomenclature given to the technique for controlling the addition of a substance to a flowing liquid or gas. Typically a dosing system is designed so that the required dosing level can be achieved by maintaining the control signal as a proportion of the fluid flow rate. The residual (dosing) level is used by the control algorithm to trim the output signal by the required amount. Any industry that mixes substances into flowing fluids potentially has the requirement for this type of control. These include the water, distilling, brewing, concrete, china clay, paper and soft drink industries or any process requiring disinfection in cooling towers, drinking water, food and beverage, swimming pools and wastewater.

Dosing Control Example

The figure above shows the general arrangement of the dosing control system which in this example uses chlorine as the dosing additive. The main fluid flow is measured upstream from the dosing pump, while the chlorine level is measured downstream. The feed forward feature in the control loop is used to achieve an output proportional to the fluid flow rate. This means that the dosing rate immediately tracks any changes in the flow rate and so avoids under or over dosing.

The dosing concentration, measured downstream, can be used to provide closed loop PID control action to trim the feed forward output. When the flow rate varies so will the transport delay of the control loop. To compensate for this, the integral time of the controller should be increased as the fluid flow rate reduces. This is achieved by using the Gain Scheduling feature of the nanodac recorder/controller. Three sets of control parameters are available, the active set selected according to the flow rate.

In some cases the dosing level to be controlled is further downstream from the dosing pump. This maybe by as much as fifteen to thirty minutes at normal flow rates. In these cases, providing the dosing level can also be measured much closer to the pump then the second loop in the nanodac recorder/controller can be used in cascade. The master loop controls the dosing level at the point further downstream. Process feedforward can still be used to compensate for flow rate changes.

Internal ‘Soft’ Wiring
In the above example, dosing level is measured using channel 1 configured for 4-20mA input. It is connected to the main PV input of the control loop.

The flow rate is measured upstream using channel 2 configured for 4-20mA input, which is connected to the Feedforward input of the control loop.

The Control output is connected via Output Module 3. This is assumed to be 4-20mA in this example, but other outputs (such as on/off) may be used to match the type of pump in use.

Click here to build your own Nanodac.

They are designed for precision control of temperature and other process variables and contain a host of advanced features including:

• Setpoint programming

• Internal timer

• Instant indication of process alarms,

• Heater faults alarms

• Clear process information

• Scrolling customized text messages

• Storage and selection of commonly used process recipes

• Remote setpoint for multi-zone applications

They can be ordered with serial and broadcast communications using Modbus Designed to integrate seamlessly with PLCs and supervisory control and monitoring systems

Typical applications include hot runner control, plastics extrusion, thermal forming, chillers, furnaces and ovens, stress relieving and many more.

It has a modular hardware construction in a 1/16 DIN size with self-tuning and the option of two control outputs, one alarm relay and a communications module. The hardware is configurable for heating, cooling or alarms. The 2216e is fully on-site configurable.

Precise advanced PID control algorithm gives stable ‘Straight-line’ control of the process. A one-shot tuner is provided to set up the initial PID values and to calculate the overshoot inhibition parameters. Power feedback is used to stabilize the output power on electrically heated loads to control temperature against supply voltage fluctuations.

It comes with a universal input circuit with an advanced analogue to digital convertor samples the input at 9Hz and continuously corrects it for drift. Input filtering from OFF to 999.9 seconds is included.

Sensor diagnostics are provided, plus dedicated cooling algorithms ensure optimum control, water and oil cooled systems. This gives high stability and rapid response to process changes. High noise immunity is achieved by rejection of 50/60Hz pick-up and other sources of noise. The input will accept all standard thermocouples, the Pt100 resistance temperature detectors and linear millivolts, milliamps or DC volts.

A LED display provides a bright, clear display of the setpoint and process value. Tactile push buttons ensure positive operation. Access to other parameters is simple and easy to understand and can be customized to present only those parameters that need to be viewed or adjusted. All other parameters are locked away under password protection.

7100L

ESwitch

Due to a short-notice, last-time-buy notification from our suppliers of some key components, it has become necessary for us to accelerate our obsolescence process for select products in our Power Product portfolio.

The following is a summary of the obsolescence stage for each of the affected products:

As of September, 30th 2016 orders for the following products will no longer be accepted (Level3 Obsolescence):

Product manufacture ceases.

Full Repair support available subject to component availability

Please feel free to call us 800-849-5655 or go on-line and complete the form for possible replacement as needed.

As of May, 31st 2017 orders for the following products will no longer be accepted (Level3 Obsolescence):

Note that these products will remain in Level 2 Obsolescence until approximately that date:

Range of available options and features becomes restricted

Product Availability may be restricted

Spares Availability: Restricted to Service activities only

Please feel free to call us 800-849-5655 or go on-line and complete the form for possible replacement as needed.

New Product Note:

The EPack-2PH and -3PH series up to 125A are scheduled for first shipments in early next year with the order book expected to open before the end of the year.

These products will be similar in essence to the EPack 1phase already available now, with two and three phase versions. More information on these new products will be provided soon

Eurotherm 2132 (1/32 DIN) Temperature Controllers provide flexible solutions.

The Eurotherm 2132 instruments use advanced PID algorithms to give stable ‘straight line’ temperature control. Self-tuning is included to optimize the control performance without the need for specialist knowledge or training.

A universal input allows selection of nine internally stored thermocouple types and the Pt100 resistance temperature detectors. Other input linearizations may be factory downloaded. Linear inputs can be scaled to the desired display range.

Two outputs are configurable for heating, cooling or alarms.

Three internal alarm setpoints are provided, configurable as high, low or deviation alarms. Alarms can be ‘blocked’ on start-up to prevent unnecessary operator alerts.

Heater failure can be detected when the controller is used with an Efit Solid State Relay.

The operator interface can be customized to present only those parameters that an operator needs to see and adjust, while all other parameters are locked away under password protection. Tactile buttons ensure positive operation.

The 3000 recipe function is unique one in many controllers of this class. Recipes can be stored under a user-defined name to recall a number of parameter settings. These settings may include operating variables or configuration parameters, providing a very powerful means of altering the setup of a controller in a single operation. Recipes may be recalled either from the HMI, over the communications link, or using digital inputs.

A current transformer input in the 3200 measures the current switched through the load. The measurement is filtered so that the on current and off currents can be separated. From this, it is possible to diagnose several load faults including partial load failure, over current and an SSR fault. Typical applications include plastic extrusion, laboratory ovens and other applications where early indication of heater failure can save energy and rework costs.

The Eurotherm 3216 has been implemented as a Chiller controller in the USA plastic market with much success.

Below is a list of the 3216 features:
1. The model 3216 has only a 90 mm depth, which allowed chiller manufacturers to have easy installation.
2. Configure of the 3216 controlleris made easy by a text display, So the user can scroll to a parameter and just a few seconds, the text display begins scrolling in marquee fashion with a description of that parameter.
3. Ordering, maintenanceand configuration have been simplified to the use of a mere 10-digit code that completely specifies the functionality and configuration.
4. Event Messages and Custom alarm can be created and loaded into the 3216.
5. The Eurotherm 3216 can replace the external timer.A timer can be used to put the unit into standby while the system is purged. Most OEMs use an external timer today, so with the 3216, a timer is not needed
6. Digital Communication is also a needed feature when selling to Chiller OEMs, and the Eurotherm 3216 meets that need.

Plastic Chiller Overview

A chiller commonly represents a small fraction of the cost of the processing equipment, yet it provides solid protection of your investment, 24-hours-a-day, and 7-days-a-week for years and years to come.The most compelling reason for a chiller in the plastics market is the protection it provides for your valuable processing equipment—such as extrusion, injection molding equipment and other applications. To increase production is another reason to use a chiller as you maintain a constant and proper cooling temperature in the equipment. A chiller will reduce the number of rejected parts while increasing the number of parts produced per hour.

A chiller is a compressor based cooling system that is similar to an air conditioner except it cools and controls the temperature of a liquid instead of air. The other main components to a chiller are a temperature controller, a recirculation pump and a reservoir. The operation and setup are simple. Fill the reservoir with fluid to be recirculated, typically water or an ethylene glycol/water mix. Install plumbing between the chiller and the application and provide power to the chiller. The controller regulates the chiller’s functions. The chiller will provide a stable flow, temperature and pressure once it has been programmed by a user. Harmful particles are kept out of the system by an internal strainer.

There are three (3) types of chillers.

An air-cooled chiller where the chillers absorb heat from process water and can be transferred to the surrounding air. Air-cooled chillers are generally used in applications where the additional heat they discharge is not a factor. They require less maintenance than water-cooled units and eliminate the need for a cooling tower and condense water pump. They generally consume approximately 10% more power than a water-cooled unit as a wet surface transfer’s heat better than a dry surface.

Second is the portable chiller, which is a liquid cooling system on casters that can be relocated from one application to another with relative ease. It can be used to cool one or more heat generating devices.

Finally, we have water-cooled chiller, which absorb heat from process water and transfer it to a separate water source such as a cooling tower, river, pond, etc. They are generally used for large capacity applications, where the heat generated by an air-cooled chiller creates a problem. Water-cooled chillers are also considered when a cooling tower is already in place, or where the customer requires optimum efficiency of power consumption. They require condenser water treatment to eliminate mineral buildup. Mineral deposits create poor heat transfer situations, which reduce the efficiency of the unit.

Summation

The Eurotherm 3216 is being used more and more to replace several interconnected devices to chillersand consolidate functions. The level of functionality, alarmingand programmability gives the user a way to create a local custom alarm strategy that can best achieve the operating safety of the machine that will help improve qualityand minimize downtime.

Here are some of the free features found in a 3500 series unit not found in a 2400 unit:

• Temperature and atmosphere control in one unit
• 50 ramp/soak programs (max of 20 in the 2400 series)
• Logic and math function blocks
• Automatic thermocouple burnout switching
• Custom interface screens

Obsolete Products

Do you have or need to replace any of the following Eurotherm or Barber Coleman instruments?

Eurotherm Ampstacks, EM1, TE10A, 91,92, 94, 808, 847, 818, 818P, 902, 903, 904, 2116

Barber Coleman 520, 570

While we do not list all of the obsolete instruments, we do provide repair, refurbished or replacement for almost all Eurotherm & Barber Coleman products.

Plus we also provide repair & replacement for most Red Lion instruments as well.

If you need over the phone or email assistance selecting a particular instrument replacement, our Engineering Specialist, Ben Hill is available ben@peproducts.com or 800-849-5655.

Allow us to help you with your obsoleted Instruments

Do you need your current product repaired or replaced?

Repair of existing products

The Mini8 controller is the ideal partner to a programmable logic controller (PLC); able to multi-drop on either Serial, Fieldbus or Ethernet communications. It offer s a real, cost-effective alternative to performing analog measurement or loop control in a PLC.

The Mini8 Controller offers high performance control usually only found in Eurotherm panel mount PID controllers.

From simple to complex, it is a compact data acquisition device also a very competitive.

Its modular design enables its I/O and feature set to be selected to cater for a wide range of applications.

The feature set of the Mini8 controller includes high performance PID control, graphical wiring and setpoint programming functions together with math, logic and timing function blocks.

It often allowing a lower specification processor to be used, because it implements these functions in the Mini8 controller reduces the hardware cost of the PLC, relieving it of the burden of performing analog functions.

When used in a data acquisition installation the high density analog I/O can be combined with paperless graphic recorder products to provide unsurpassed local and network access to your process.

• Current range: 16-100A at 45°C, Voltage up to 500V
• High reliability with no mechanical contacts
• Optimized design for reduced size
• Simple installation and maintenance
• Fast cycle times give increased heater life
• Protected against transients

Economic solid state contactor for use with the low temperature coefficient loads.

The 7100L range provides an effective replacement for electromechanical contactors.

There are no mechanical contacts to wear out and so maintenance costs and downtime are reduced.

Silent operation and lack of electrical interference, achieved by zero voltage switching, give environmentally friendly operation. Fast switching reduces the thermal cycling of the elements resulting in improved control and extended element life.

Fusing

High speed fuses are external to the unit and can be ordered complete with fuse holder as part of the 7100L order code. Spare fuses or complete fuse and fuse holder assemblies can also be ordered separately

Inputs

Firing is ON/OFF in response to the logic input, with zero voltage switching. A green ‘heat’ LED indicator on the front face indicates the status of the input signal.

These units, with integral heatsinks, are driven by a logic input signal which can be either AC or DC.

The 3200i range of Eurotherm indicators offer accurate indication of temperature and process measurements. Process interlocks, including over-temperature furnace limits, are implemented using relay output channels.

The Eurotherm emphasis is on ease of use. A simple ‘Quick Start’ code is used to configure all the functions essential for indication and protecting your process.

The PenGUIn machine-HMI clearly distinguishes itself in the market place through a powerful combination of monitoring, control and outstanding communication capabilities. Besides the standard HMI functionality, it includes protocol conversion, port sharing and web server capability.

All these impressive features are easily configured and managed by GUIcon software package, which includes an extensive library of more than 5000 objects. Add to this, a strong sales team comprised entirely of degree qualified engineers who understand your process, an absolute commitment to innovation, and 5% of our total sales continuously re-invested in research and development, we can and do imagine making the impossible possible for our customers.

Choose from a list with over 200 drivers for a variety of devices. Communicate with up to 13 of them SIMULTANEOUSLY and access them REMOTELY. FEATURES:

• Convert over 200 protocols
• Built-in web server
• Two Ethernet ports
• Two USB ports
• Remote monitoring & control
• Free software and support

Extend the life of your heaters Tests performed by a well-known heater supplier have shown that heaters can last up to seven times longer when used with a solid state contactor. Faster on/off cycle times cause less thermal expansion and contraction and thus reduce breakage due to fatigue and thermo-mechanical stress. So by preserving the heating elements, ESwitch will allow you to maximize your ROI:

• Increase lifetime of heating elements
• Reduce downtime
• Minimize scrap
• Improve yield and productivity

By combining robustness, security of operations with simplicity of integration and use, ESwitch offers the best ratio of 'performance versus price' for the power switches market.

Ideal for

• Injection molding
• Thermo-forming
• Multi-zone heating
• Autoclaves
• Ovens

The Mini8 Loop Controller is a data acquisition device that is both compact and competitive. It comes with a modular design and this is what enables the selection of its feature set and I/O for so many different applications, both complex and simple.

The Mini8 works really well with a programmable logic controller or PLC. The device allows the implementation of certain functions that helps in reducing the cost of PLC hardware, taking the burden of performing analog functions away from the PLC.

If we compare its performance with other similar devices, then it will be put in the same bracket as Eurotherm panel mount PID controllers. The device includes a feature set that comprises PID control, set point programming, and graphical wiring amongst others.

Eurotherm temperature control solutions are specialized products for manufacturing and process control instrumentation. These temperature control solutions are based on highly accurate PID algorithms and data management strategies, which minimize the waste in your facility, save you lots of money, improve quality, and ensure data safety till the time it is required.

With a versatile range of temperature control products available at disposal, you can easily find different solutions to different process related issues. In this category of products, you will have devices like single loop controllers, multi-loop controller, indicator and alarm units, and special software in your arsenal to improve process functionality and limit errors. These products serve food, chemical, packaging, and pharmaceutical industries and many more. All these products are rich in features and designed to offer easy operation and reduced engineering time. What’s more; these temperature solutions come with market’s leading algorithms and recording & data management strategies that add value to many industrial processes.

Download the latest whitepaper from our Glass Manufacturing Knowledge Series by René Meuleman.

Electrical boosting is a method of inputting extra energy into a glass furnace to enable better control of the melt flow for faster pull rates. The design of the boosting system can have an impact on the amount of energy used and consistency of the melt. This paper describes some of the advantages and possible side effects of different system designs along with some recommendations for better energy efficiency and end product quality.
http://www.eurotherm.com/blog/glass-blog/improved-furnace-boosting-system-design

MOUNTAIN VIEW, Calif. — November 10, 2015 - Based on its recent analysis of the non-contact infrared (IR) temperature sensors market, Frost & Sullivan recognizes Exergen Global BV (Exergen) with the 2015 Global Frost & Sullivan Entrepreneurial Company of the Year Award. Exergen has combined its expertise in mechanical engineering with its in-depth knowledge of thermal management to develop truly comprehensive solutions, rather than products that are simply “technologically advanced.” Instead of manufacturing off-the-shelf IR temperature sensors, Exergen’s customized solutions perfectly match each original equipment manufacturers’ (OEMs’) unique production requirements to provide a best-in-class customer experience.
“Exergen has leveraged two decades of experience to develop its exclusive Sensoranics™ Methodology, which assists OEMs in speeding up their production processes as much as an estimated 30 percent while adhering to quality standards. It achieves this by employing a core equation that helps continuously monitor the temperatures of dynamic processes,” said Frost & Sullivan Industry Principal Dr. Rajender Thusu. “Exergen has introduced several mechanical add-ons to its product portfolio to avoid reflection and radiation entering the infrared sensor and altering the direction of infrared waves. Exergen’s sensors are reliable and highly accurate, regardless of environmental impediments.”

Click to read the full Press Release on our website!

which has more certifications & built with the latest technology.

Easy to integrate and commission, yet highly cost effective, the EFit power controller provides no compromise control for resistive and infrared heating elements.
Here's the link to get more information and pricing :
Eurotherm-EFit-single-phase-power-controller
